Softdial Scripter™ - Step Library

Pull Transfer

Used to pull the call to this agent from the other party on a supervised transfer.

1. Session ID (Optional) From V10.5.379 / V10.6.231 - this parameter was added to replace auto generation of a Session ID parameter.

If this value is

  • specified - the value is always used
  • not specified - a Session ID parameter is not included in the message

Prior to these versions there were no Inputs to this step.

Pull Transfer - Inputs

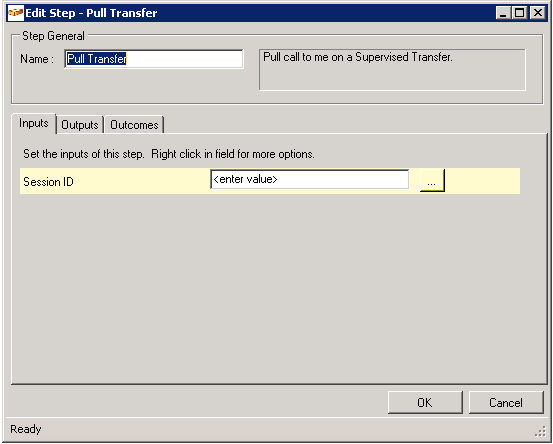

Fig. 1 - Pull Transfer - Inputs

None


1. Session ID From V10.5.379 / V10.6.231 - prior to these versions there were no Outputs to this step. See also Inputs, above

Pull Transfer - Outputs

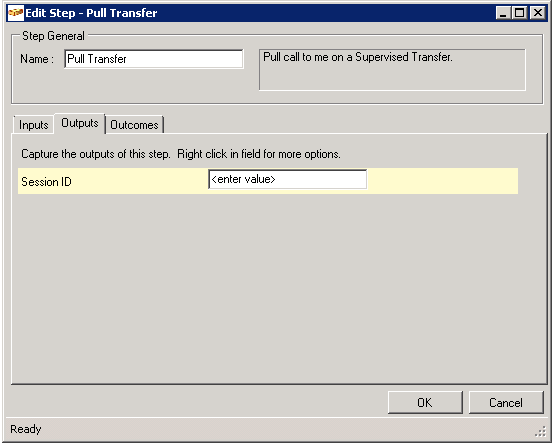

Fig. 2 - Pull Transfer - Outputs


1. Drop The call was dropped before the transfer was completed or there was a telephony error
2. Success The 3rd Party was successfully transferred
3. No Pull The Pull Transfer was not successful - the call is not connected to this agent

Pull Transfer - Outcomes

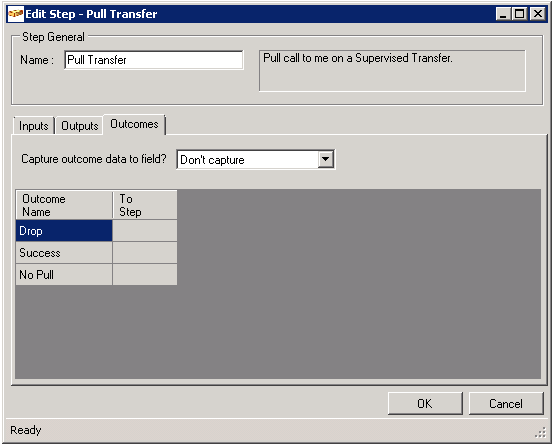

Fig. 3 - Pull Transfer - Outcomes
