Softdial Scripter™ - Step Library

Push Transfer

Used to push the call to the other party on a supervised transfer.

1. Session ID (Optional) From V10.5.379 / V10.6.231 - this parameter was added to replace auto generation of a Session ID parameter.

If this value is

  • specified - the value is always used
  • not specified - a Session ID parameter is not included in the message

Prior to these versions there were no Inputs to this step.

Push Transfer - Inputs

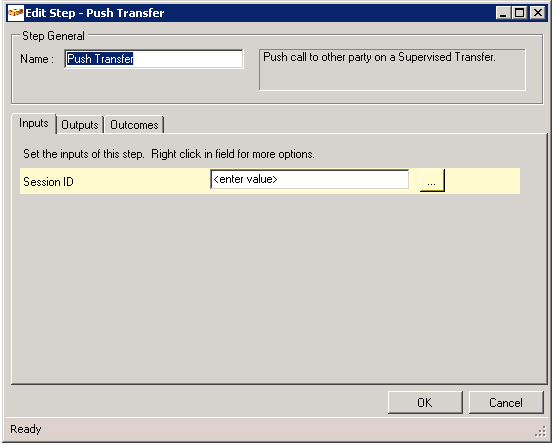

Fig. 1 - Push Transfer - Inputs

None


1. Session ID From V10.5.379 / V10.6.231 - prior to these versions there were no Outputs to this step. See also Inputs, above

Push Transfer - Outputs

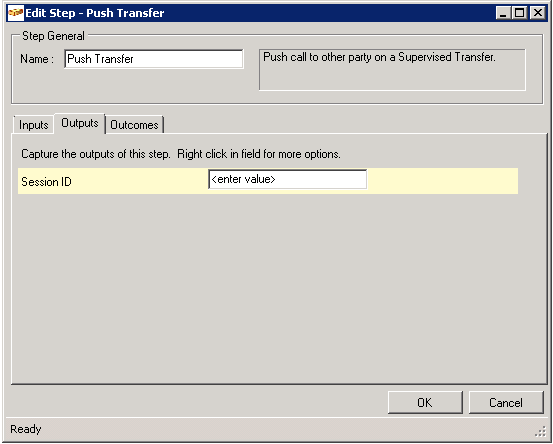

Fig. 2 - Push Transfer - Outputs


1. Drop The call was dropped before the transfer was completed or there was a telephony error
2. Success The call was successfully transferred
3. No Push The Push Transfer was not successful - the call is still connected to this agent

Push Transfer - Outcomes

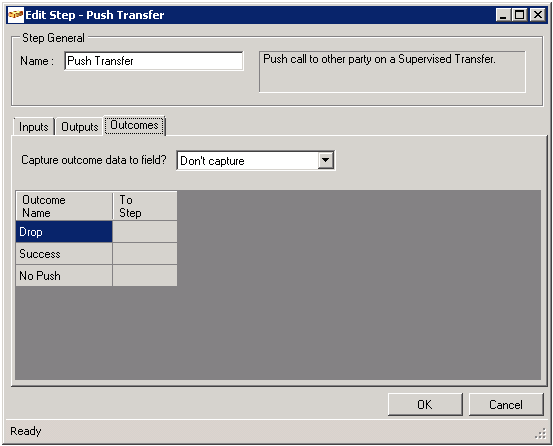

Fig. 3 - Push Transfer - Outcomes
