Softdial Scripter™ - Step Library

Remove Field from Record

Removes a named field from an XML representation of a database record.


1. Record Document (Mandatory) The string containing an xml representation of a record.
2. Field Name (Mandatory) The name of the field to be removed from the record document. If found in the document it will be deleted.

Remove Field from Record - Inputs

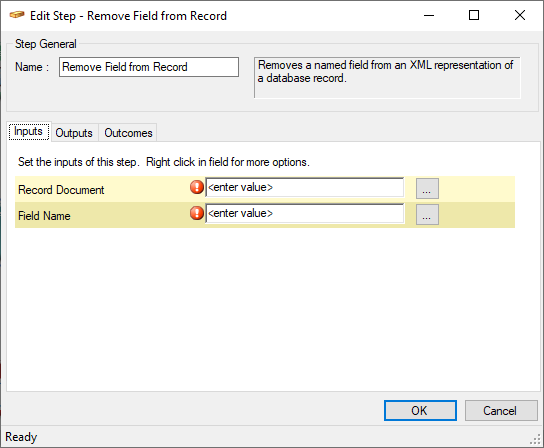

Fig. 1 - Remove Field from Record - Inputs


1. Record Document The string containing an xml representation of a record.

Remove Field from Record - Outputs

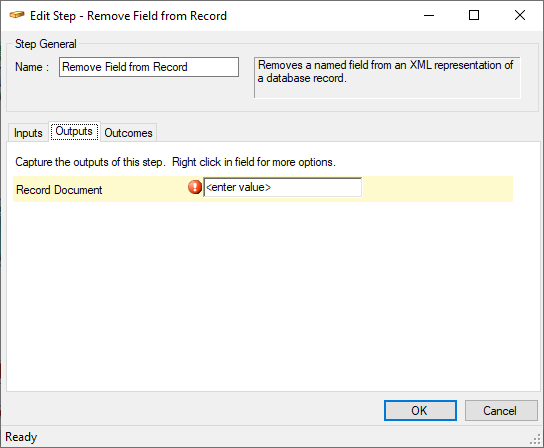

Fig. 2 - Remove Field from Record - Outputs

Depending on the success of the operation:

1. Next
2. Fail
