Find String Matching Regular Expression
Used to find an instance of a substring within the input string that matches a particular regular expression pattern.
Inputs
| 1. | Input String | (Mandatory) | A string value or a field |
| 2. | Start Position | (Optional) | The position from which to start searching within the Input String. Defaults to the start of the string |
| 3. | Search Pattern | (Mandatory) | The regular expression pattern to be searched for within the Input String |

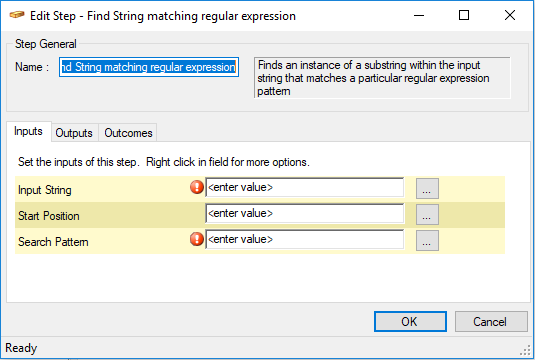

Fig. 1 - Find String Matching Regular Expression - Inputs
Outputs
| 1. | Match Value |
The first value matched in the search string. |

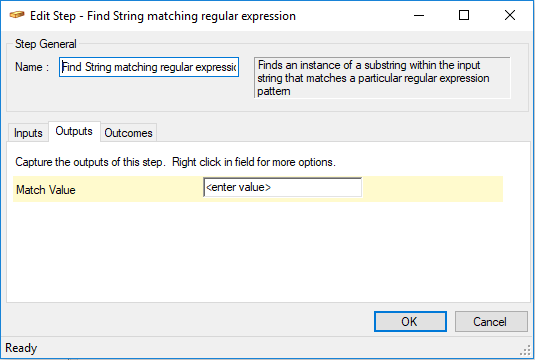

Fig. 2 - Find String Matching Regular Expression - Outputs
Outcomes
Depending on the result of the operation:
| 1. | True |
| 2. | False |

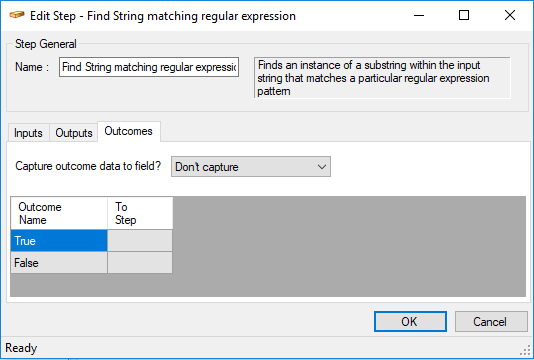

Fig. 3 - Find String Matching Regular Expression - Outcomes
