Transfer Endpoint Call
Transfers the current endpoint's call to another party.
Inputs
| 1. | Destination Address | (Mandatory) | The destination address to transfer to. |
| 2. | Ring Timeout | (Optional) | The number of seconds after which the call will return 'failed'. If not set, defaults to 25 seconds. |
| 3. | Calling Line Identity | (Optional) | The CLI to be presented when this number is dialed. Any value passed here must be a valid address terminating to your equipment. |

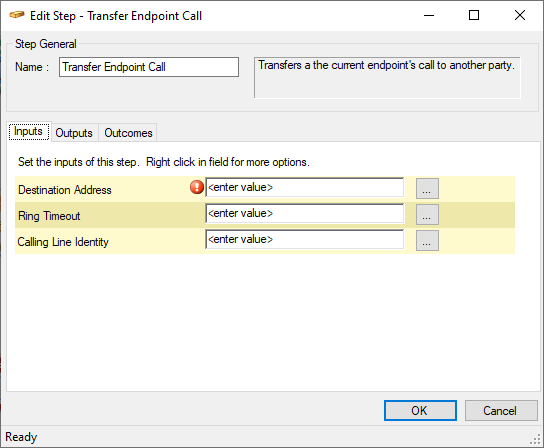

Fig. 1 - Transfer Endpoint Call - Inputs
Outputs
None
Outcomes
| 1. | Drop | Telephony error |
| 2. | No Transfer | Still connected |
| 3. | Offering | Transfer is offering |
