Endpoint Make Call
Make a call from the user's current endpoint.
Inputs
| 1. | Number | (Mandatory) | The destination phone number. |
| 2. | Session ID | (Optional) | Specify a unique session identity for this call. If none is specified a unique one will be generated. If a value is given and it is longer than 80 characters, it will be truncated to 80 characters and passed as the output. |
| 3. | Calling Line Identity | (Optional) | The CLI to be presented when this number is dialed. Any value passed here must be a valid address terminating to your equipment. |

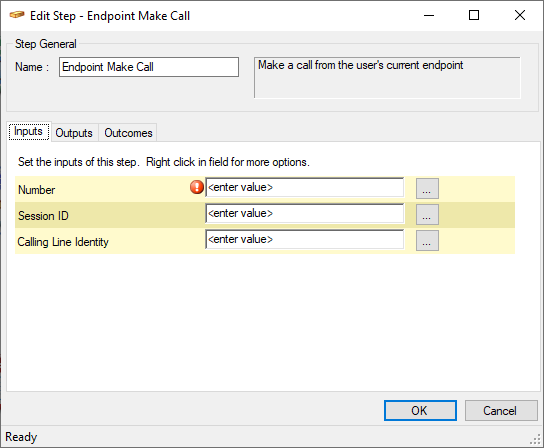

Fig. 1 - Endpoint Make Call - Inputs
Outputs
| 1. | Session ID | (Optional) | Specify a unique session identity for this call. If none is specified a unique one will be generated. If a value is given and it is longer than 80 characters, it will be truncated to 80 characters and passed as the output. |
| 2. | Failure reason | (Optional) | In the event of a failure, the text reason for the failure. |

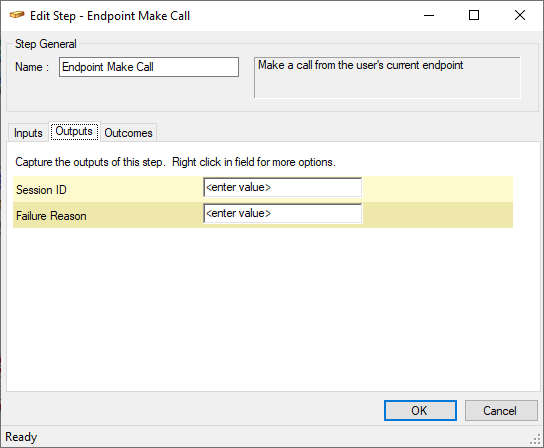

Fig. 2 - Endpoint Make Call - Outputs
Outcomes
Depending on the success of the operation
| 1. | Next | |
| 3. | Failed |
